1 Product overview

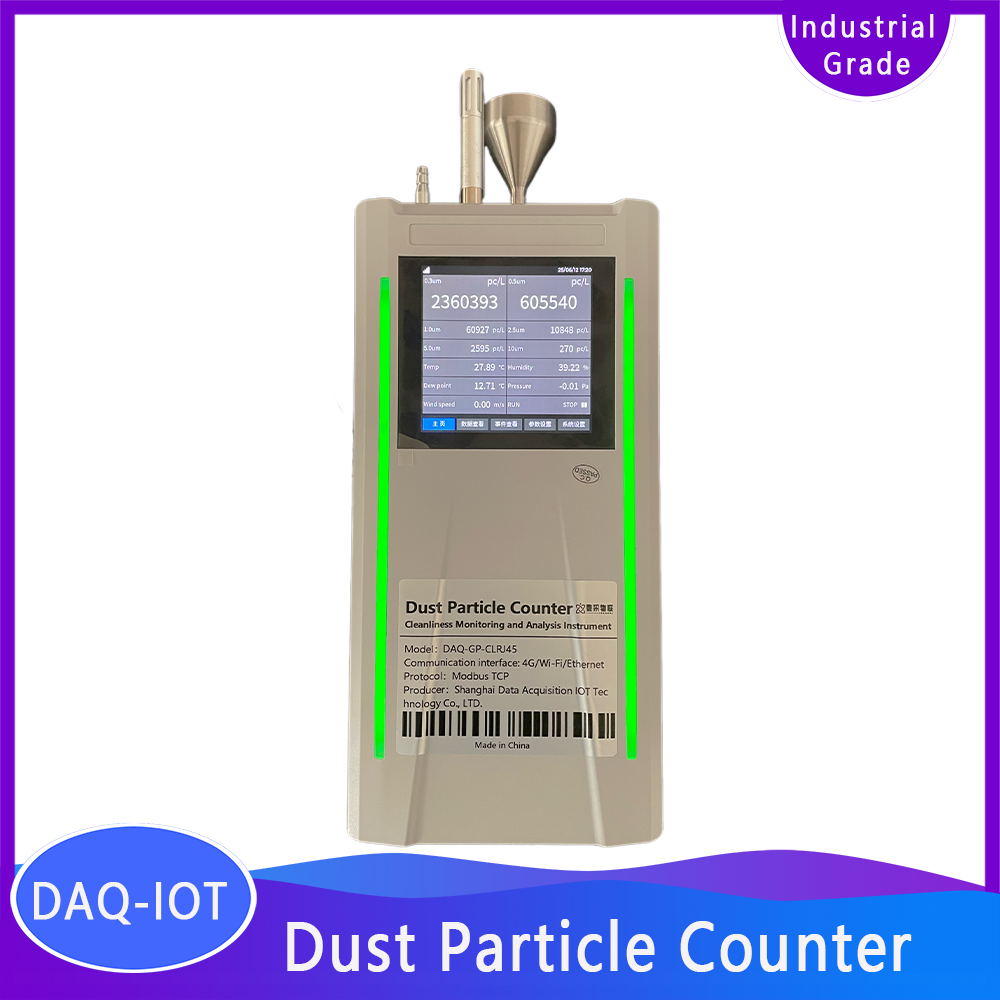

DAQ-GP-CL4G cleanliness monitor terminal is a multi-functional dust particle counting device based on 4G wireless transmission launched by Shanghai Digital Mining Internet of Things Technology Co., LTD. It takes air samples through the built-in air pump, and then the number of particles of different sizes is calculated by the built-in microprocessor. It can collect the dust particle number, temperature and humidity, dew point, wind direction and wind speed data in the environment.
The cleanliness monitor supports 4G / WIFI / RJ 45 network port communication mode, easy operation, intuitive interface analysis, built-in lithium battery, equipped with standard Type-C charging port, easy to carry. It is suitable for the environmental air quality testing of blood center, CDC, quality supervision institute and other authoritative institutions, as well as pharmaceutical workshop, semiconductor workshop and other production enterprises and scientific research departments.
2 Order specifications and type selection
model | transmission mode | Characteristics of the description |
DAQ -GP-CL4G | wireless | 4G communication, 220V AC / 12V DC power supply, suitable for high acquisition frequency or convenient external power supply occasions. Because the device is on line for a long time by default, it can support remote configuration parameter debugging, and the site only needs to install and connect the power. |
DAQ -GP-CLWIFI | wireless | WIFI communication, 220V AC / 12V DC power supply, suitable for high acquisition frequency or convenient external power supply occasions. Internal LAN data transfer is supported only. |
DAQ -GP-CLRJ45 | wired | RJ 45 communication, 20V AC / 12V DC power supply, suitable for high acquisition frequency or external power supply and network port connection convenient occasions. |
3 service idea
We solemnly promise that:
You buy not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )
This product, the site only ordinary workers electric installation! No debugging!
We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.
Free Internet of Things solution consulting services!
4 Product characteristics parameters
4.1 Collect characteristics
l Particulate matter detection range: 0.3-10 μ m
l Particle detection resolution: 1 μ g / m³
l Particle measuring range: 0 ~ 200,000 particles / L
l Pressure detection range: ± 500 Pa
l Error range of pressure detection: 0~1%
l Error range of temperature measurement: ± 0.5℃
l Flow rate measurement error range: ±5%@2.83L
4.2 electrical character
l Power supply mode: 12V DC power supply (power interface: DC5.5*2.1mm master head socket)
l Charging mode: 5V DC power supply (power interface: type-C)
l Battery capacity: 2,000 mA
l Operating current: 550 mA
l Standby current: 200 mA
4.3 Communication characteristics
l Transmission mode: 4G (default) / RJ 45 / WiFi
l Communication protocol: MQTT / TCP can customize other protocols
l Data forwarding: support any public network server
l Heartbeat packet: Support for a custom heartbeat packet.
l Registration package: support custom registration package, can be set to IMEI code.
4.4 structural property
l Antenna type: rubber rod type external antenna
l Screen: 480 * 480 color LCD screen (capacitive touch screen)
l Material: ABS plastic (enclosure)
l Weight: 800g

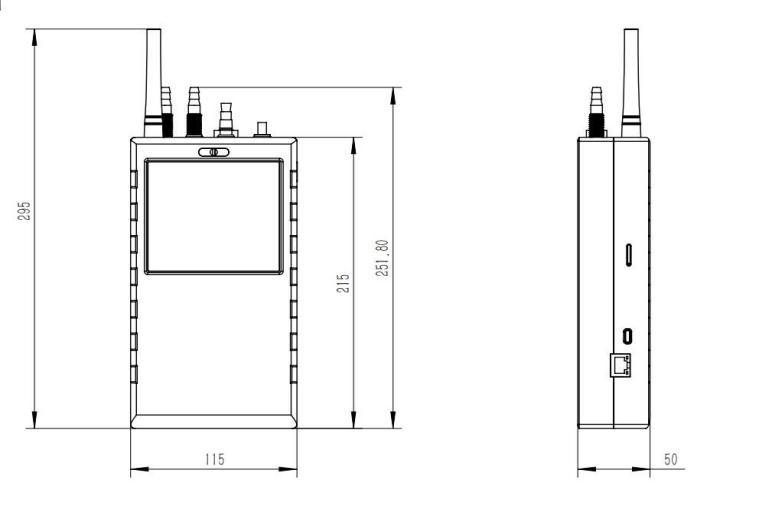

l Body size: 215 * 114 * 48MM
l Main body installation method: paste, screw fastening and installation
4.5 work environment
l temperature:-10℃~60℃
l Humidity: 0% ~ 95% RH
5 Product core advantages
v Support wireless transmission, simple installation, reduce the wiring workload
v Support built-in lithium battery, while supporting handheld and online monitoring of two ways
v Support any third-party software such as the Internet of Things cloud platform and MES system to provide data protocol docking
v Alarm overlimit reminder function, in line with ISO14644-1 international standard and GB / T16292-1996 national standard
v Support mobile APP, computer browser remote view data
v Support the historical data query function
6 communicating protocol
6.1 Protocol parsing instructions
For TCP / MQTT and other push methods, users should provide the public network IP (or domain name) address and port number of the cloud server to receive the data.
Example of JSON format:
{"flag0.3":51707.00,"flag0.5":9214.00,"flag1":622.00,"flag2.5":56.00,"flag5":16.00,"flag10":0,"tmp":16.75,"humi":26.28,"dp":-2.78,"diff":-0.01,"ID": " 30204BR221TODE88 "}
Message analysis:
{
"Number of flag0.5":9214.00,//0.5um particles
"Flag 1": 622.00, / / 1um number of particles
"Flag 2.5": the number of 56.00,//2.5um particles
"Flag 5": 16.00, / / 5 number of um particles
"flag10": 0, / / 10um particles
"Tmp": 16.75, / / temperature value
"Humi": 26.28, / / humidity value
"dp": -2.78, / / dew point value
"Diff": -0.01, / / pressure difference value
}
6.2 Agreement customization
If you need to customize other communication protocols, you can contact the business personnel to communicate.
7 Platform docking
7.1 Default platform
The product is connected to our designated open industrial Internet of Things platform by default, and the platform interface is as follows:
Computer-side browser interface
Mobile terminal access interface
7.2 The user specifies the platform
Take the connection of Ali Cloud platform as an example. After users create products and add devices on the Ali Cloud Internet of Things platform, users need to provide a triad: {ProductKey, DeviceName, DeviceSecret} and MQTT theme to be released.
For example, the value of triples are:
ProductKey = b0FMK1Ga5cp
DeviceName = 862991419835241
DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q
8 matters need attention
This product is the default built-in Internet of Things SIM card, the traffic fee is about 20 yuan per year, including free technical support fees and lifetime maintenance costs. If you need to use the user's own SIM card, please inform you in advance.
