1 Product Overview

SC-GP-RPM4G无线转速监测仪是上海数采物联网科技有限公司推出的一款基于霍尔元件感应导磁体原理，经内部精密电路的处理实现转速测量的仪器。可用于检测各类旋转机械的转速。

应用领域： SC-GP-RPM4G无线转速检测仪可广泛适用于电力，冶金，石化和造纸行业的大型旋转机械（如汽轮机，压缩机，电机，风机，泵）的转速及齿轮转速的测量。同时在工件加工转速监控，钢管涂装转速监控以及齿轮转速测量等领域广泛应用。

2

3

Our company solemnly promises:

What you purchase is not just a product, but also meticulous and thoughtful technical support services!!!( =^_^= )

For this product, on-site installation only requires ordinary workers to connect the electricity! No debugging is needed!

We provide free remote guidance and remote configuration and debugging services, and send data to the cloud platform designated by the user.

As an expert in industrial data collection, Shucai Wulian provides free consulting services for Internet of Things solutions!

4 Product Feature Parameters

4.1 Acquisition Characteristics

Measurement range:

0~15000 revolutions per minute (60 measuring points per revolution)

0~30000 revolutions per minute (30 measuring points per revolution)

0~9000000 revolutions per minute (1 measuring point per revolution)

Measurement accuracy: 0.5%

Measured materials: iron, magnet (other metal materials need to be specified)

4.2 Electrical Characteristics

Operating power supply: DC 12V

Power consumption: less than 5W

4.3 Installation Characteristics

Installation gap: recommended 0.5 ~ 3mm

Installation diagram

4.4 Communication Characteristics

Wireless transmission methods: 4G/LoRa/WiFi/Ethernet cable

Communication protocols: MQTT/TCP/UDP/HTTP/SSL/, other protocols can be customized

Data forwarding: Any public network server

Number of server centers: It can support reporting data to up to 7 cloud servers simultaneously.

Heartbeat packet: Supports custom heartbeat packets, which can be set as signal strength.

Registration packet: Supports custom registration packets, which can be set as IMEI code.

4.5 Structural Characteristics

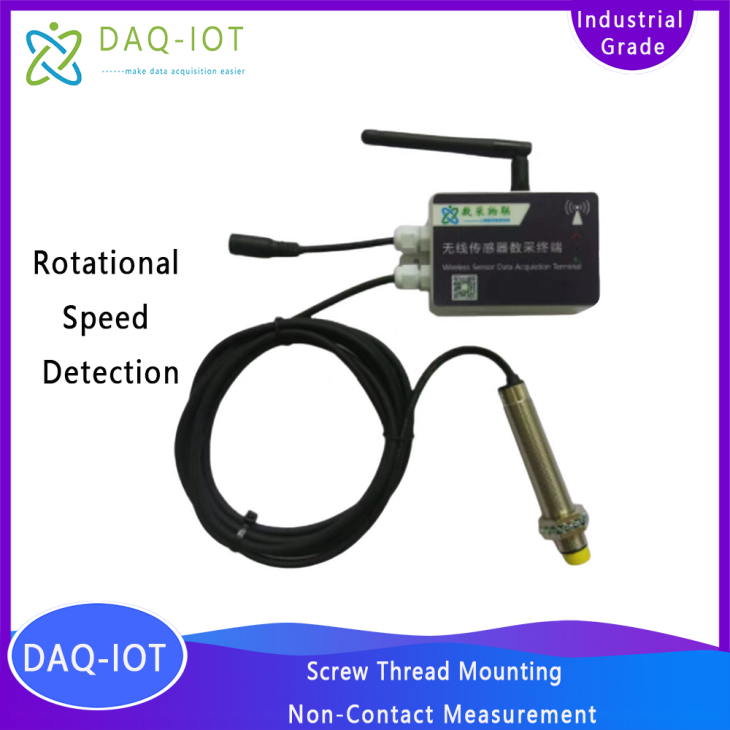

Probe size: M16*1*80mm

4.6 Working Environment

l Temperature: -30°C～75°C, Humidity: 0～95%

5 Core Advantages of the Product

u Simple installation and rapid deployment, facilitating the rapid implementation of IoT projects.

u Supports custom registration packets and heartbeat packets, making it convenient for the platform to distinguish devices.

u Supports any IoT cloud platform and configuration software, providing data protocol docking.

u Supports mainstream cloud platforms such as Alibaba Cloud, Baidu TianGong, OneNet, and Tencent Cloud.

u Supports external multiple sensors.

u Non-intrusive collection, without affecting the normal operation of equipment.

u Supports remote parameter configuration and FOTA remote upgrade, minimizing the labor cost of on-site construction and maintenance.

6 Typical Application Cases

7 Data Reporting Communication Protocol

7.1

Multiple push methods such as UDP/TCP/MQTT/HTTP are available. Users need to provide the public IP address and port number of the cloud server to receive data.

Example of JSON format data message:

{"IMEI":860344048491162,"RotateSpeed":254,"ICCID":"1119205006447538"}

Message parsing:

{

"RotateSpeed":2000    // Rotational speed r/min

"ID": "860344048491162" // Device ID

}

Protocol reception test

The network debugging assistant NetAssist can be used for reception testing.

7.2 Protocol customization

If other communication protocols need to be customized, please contact the business personnel for communication.

8 Platform docking

8.1 Default platform

The product is connected to our designated open industrial Internet of Things platform by default when leaving the factory. The platform interface is as follows:

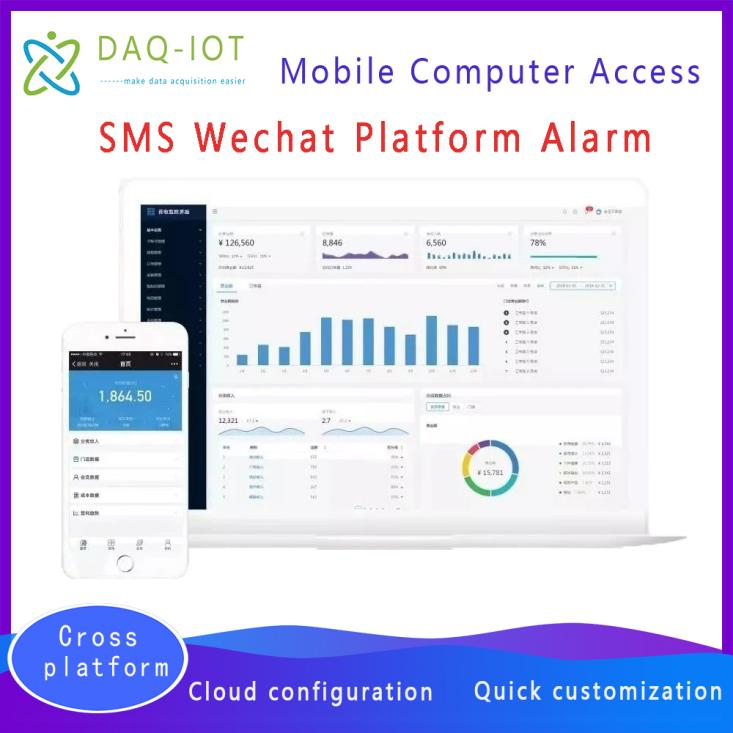

电脑端浏览器界面

手机端微信访问界面

8.2

Taking the docking with Alibaba Cloud platform as an example, after a user creates a product and adds a device on the Alibaba Cloud IoT Platform, the user needs to provide a triplet: {ProductKey, DeviceName, DeviceSecret} and the MQTT topic to be published.

For example, the values of the triplet are respectively:

ProductKey = b0FMK1Ga5cp

DeviceName = 862991419835241

DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q

Taking the docking with OneNet platform as an example, after a user creates a product and adds a device on China Mobile's OneNet platform, the user needs to provide the product ID and device registration code.

For example:

ID: 332590

Registration code: DGRUa7Vr9KYGunwJ

9 Installation Notes

1) The product has a built-in SIM card, and the annual data fee is about 10-20 yuan depending on the frequency of reported data. Users can also use their own SIM cards, which needs to be confirmed in advance.
