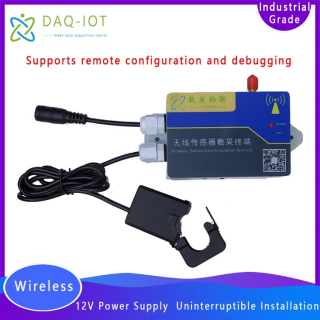

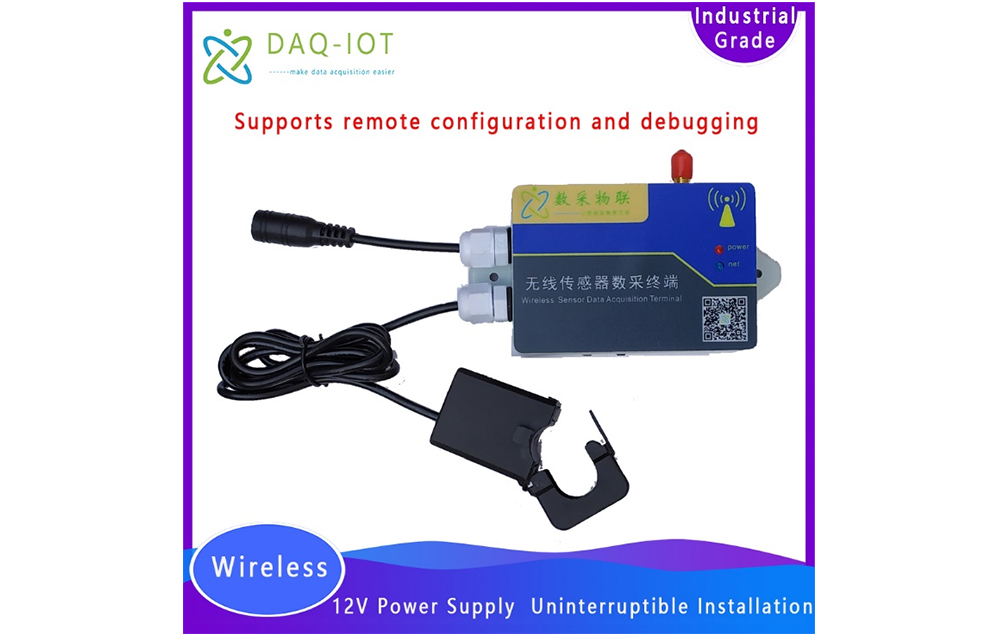

1  Product Overview

SC-GP-CT01 wireless current and temperature acquisition sensor terminal is equipped with low power consumption and high sensitivity of the open type transformer, through the principle of electromagnetic induction, the primary side of the large current into the secondary side of the small current, and then used for current monitoring, can be very sensitive to detect the size of the line current, and at the same time to the designated platform server wireless report data regularly.

The sensor terminal supports 4G/NB-IOT/LoRa/WiFi communication mode (the battery power supply adopts NB-IOT/LoRa communication mode by default), which overcomes the wireless communication block caused by the special environment on the site, greatly simplifying the field deployment time and reducing the construction cost. This terminal can support up to 8 current acquisition, with a wide range of open and close transformers, high quality magnetic core materials, open and close structure, easy to install, used for AC motors, lighting equipment, air compressors, heating ventilation and air conditioning devices, building self-control system, industrial urban network, rural power grid renovation projects and other scenes of current monitoring and acquisition.

2 Service Concept

We solemnly promise that:

 What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )

 This product, the site only ordinary workers connected to electricity installation! No debugging!

 We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.

Free Internet of Things solution consulting services!

3 Product Features

3.1 Current Acquisition Characteristics

Collection Type: DC/AC Optional

Current Range: 0 to 1000A Optional

Maximum Input: 100%(continuous)/150%(1 min)

Current Accuracy Level: ±2%

Number of Channels: Supports 1 to 8 current or temperature collection channels

Collection Frequency: 1 second to 24 hours. Remote configuration is supported

3.2 Temperature Acquisition Characteristics (Optional)

Acquisition Type: Electrical contact point temperature

Temperature Range：-20℃ to +125℃

Temperature Accuracy Class: ±1%

Collection Frequency: 1 second to 24 hours. Remote configuration is supported

3.3 Electrical Character

Power Supply Mode: battery power supply or 12V DC / 220V AC

Insulation Impedance: > 100 MΩ (primary / secondary room)

3.4 Communication Characteristics

Wireless Transmission Mode: 4G / NB-IOT / LoRa / WiFi

Communication Protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized

Data Forwarding: any public network server

Number of Server Centers: up to simultaneous data reporting to 7 cloud servers.

Heartbeat Packet: support custom heartbeat packet, can be set to signal intensity.

Registration Package: support custom registration package, can be set to IMEI code.

Positioning: Support LBS base station positioning to facilitate the query of device location.

3.5 Structural Property

Antenna Type: sucker or glue stick external antenna (optional built-in antenna)

Material: PC plastic (enclosure)

Main Protection Level: IP65

Main Body Size: 200mm 94mm 60mm

Transformer Probe Structure: open type

Main Mounting Method: wall hanging or screw fastening

Instrument Transformer Probe Mounting Method: suspension mounting

Temperature Probe Installation Mode: bundled installation

3.6 Work Environment

Ambient Temperature: -25°C~75°C

Humidity: 0~95% (non-condensing)

4 Product Core Advantages

v Simple installation, fast deployment, help the Internet of things project quickly landing.

v Support non-destructive installation when the power is on, and the user equipment does not need to be powered off during installation.

v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.

v Support any private Internet of Things cloud platform and configuration software, and provide data protocol docking.

v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.

v Supports external multiple sensors

v Non-invasive measurement, which does not affect the normal operation of the equipment.

v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.

5 Data Reporting Communication Protocol

5.1 Protocol Parsing Instructions

For UDP / TCP / MQTT / HTTP and other push methods, users should provide the public network IP (or domain name) address and port number of the cloud server to receive the data.

Example of JSON format:

{"A":56.7,"B":55.8,"C":49.3,"D":1.2,"deviceID":"860344048491162"}

Message analysis:

{

"A": 56.7, // Circuit 1 current value

"B": 55.8, // Circuit 2 current value（optional）

"C": 49.3, // Circuit 4 current value（optional）

"D": 1.2, // Circuit 4 current value（optional）

"deviceID": "860344048491162" // Device ID

}

5.2 Agreement Customization

If you need to customize other communication protocols, you can contact the business personnel to communicate them. This product orders over 1000 yuan, free custom communication protocol.

6 Platform Docking

6.1 Default Platform

The product is connected to our designated industrial Internet of Things platform by default, and the platform interface is as follows:

Computer-side browser interface

Mobile terminal WeChat access interface

6.2 The User Specifies the Platform

Take the connection of Ali Cloud platform as an example. After users create products and add devices on the Ali Cloud Internet of Things platform, users need to provide a triad: {ProductKey, DeviceName, DeviceSecret} and the MQTT theme to be released.

For example, the value of triples is:

ProductKey = b0FMK1Ga5cp

DeviceName = 862991419835241

DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q

7 Application Cases

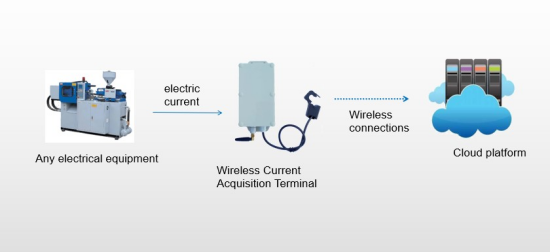

Equipment operating status/duration monitoring

8 Matters Needing Attention

(1) The product supporting transformer probe does not have waterproof function, such as outdoor use, need to be waterproof treatment.

(2) This product factory default built-in iot SIM card, the first year free, the next year from the traffic fee of about 20 yuan per year including free technical support costs. Please inform us in advance if you need to use your own SIM card.

9  Contact Us

Website: www.daq-iot.com

Tel: +8619936624847

Email: shengrunan@daq-iot.com

    WhatsApp：+8619936624847

10 Appendix

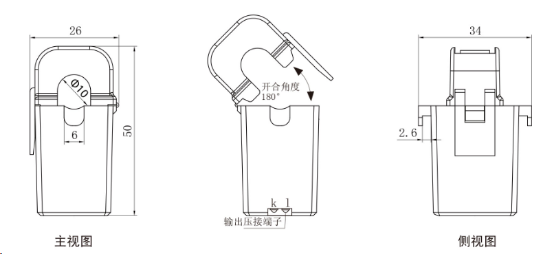

Transformer appearance dimensions (unit mm)
