Photovoltaic Interface Adapter

1 Product Overview

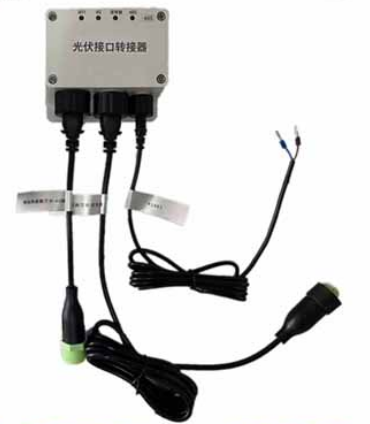

DAQ-GP-485PIA Photovoltaic Interface Adapter (hereinafter referred to as the adapter) is designed by our company in response to the latest requirements of State Grid Corporation in the field of photovoltaic power generation. The photovoltaic interface adapter is a device that cooperates with the photovoltaic protocol converter to realize the collection of inverter power generation and electricity consumption information. It supports photovoltaic inverter manufacturers such as Ginlong, GoodWe, Growatt, Huawei, Aotec, Sungrow, Chint, Sanjing, Shouhang, Megarevo, Solis, and Hopewind. It is used for the switching of dual master station login between the electricity information collection system of a single inverter and the manufacturer's cloud platform. It expands the original 1-channel communication RS485 port of the inverter into two channels. Under the condition that one channel ensures the communication of the manufacturer's cloud platform is not affected, the other RS485 port is connected to the photovoltaic protocol converter, so that both master stations can normally collect and issue control commands, etc. The switching structure adopts ARM microcontroller MCU control to realize channel selection. The default is to select the manufacturer's RS485 communication channel. When the protocol converter communicates, it sends a switching command to switch to the grid RS485 channel, and switches back to the manufacturer's communication channel after the communication is completed. The adapter should adopt a unified main structure, and realize communication and control of inverters with different interfaces by replacing the aviation plug cable that matches the inverter interface. 2 Service Philosophy Our company solemnly promises: What you buy is not just a product, but also meticulous and thoughtful technical support services!!!( =^_^= ) For this product, only ordinary workers are needed for on-site power connection and installation! No debugging is required! We provide free remote guidance and remote configuration and debugging services to send data to the user's designated cloud platform. Free consultation services on the Internet of Things solutions are provided! 3 Implementation Standards DL/T698.31-2010 "Electric Energy Information Collection and Management System - Part 3-1: Technical Specification for Electric Energy Information Collection Terminals - General Requirements" DL/T698.35-2010 "Electric Energy Information Collection and Management System - Part 3-5: Technical Specification for Electric Energy Information Collection Terminals - Special Requirements for Low-Voltage Concentrated Meter Reading Terminals" Q/GDW1375.3—2013 "Type Specification for Electric Power User Information Collection System - Part 3: Type Specification for Collectors" Q/GDW1374.2—2013 "Technical Specification for Electric Power User Information Collection System - Part 2: Technical Specification for Concentrated Meter Reading Terminals" "Object-Oriented Communication Protocol for Electricity Information Collection" "State Grid Shandong Electric Power Company Technical Specification for Solidified Distributed Photovoltaic Communication Protocol Converter Communication Interface Adapter" "Series of Technical Specifications for Interconnection and Intercommunication of Low-Voltage Power Line Broadband Carrier Communication" 4 Product Characteristic Parameters 4.1 Structural Features l Installation method: DIN rail type l Material: PC plastic (housing) l Dimensions: 90mm*80mm*74mm 4.2 Electrical Characteristics l Power supply mode: DC5~24V l Operating power consumption: less than 5W 4.3 Operating Environment Characteristics l Temperature: -25℃～70℃, extreme temperature: -40℃~70℃ l Relative humidity: 10%~100% (no condensation) 4.4 Communication Characteristics Communication is carried out via RS485. The default baud rate of the RS485 interface is 9600bps, with parity mode being none, data bits 8, stop bit 1. It can adapt to the 485 interface rate of the inverter to realize automatic serial port matching. 5 On-Site Installation 5.1 Installation Form On-site installation diagram The converter adopts rail-type installation, which is convenient and reliable. 5.2 Port Definition Port 1: Install the original inverter 4G module (collection stick) here. Port 2: The aviation plug is installed to the original installation position of the corresponding photovoltaic inverter 4G module (collection stick) (the adapter is equipped with a 1.5-meter cable). Port 3: Connect to the RS485 interface of the corresponding photovoltaic protocol converter (the adapter is equipped with a 1.5-meter cable). 5.3 Installation and Wiring Precautions Common problems in RS485 wiring: The RS485 line of the adapter is reversed with the RS485 line of other devices; The RS485 line A and line B of the adapter are short-circuited; the aviation plug is not installed in place. 6 Name and Content of Hazardous Substances in the Product 7 Transportation and Storage The product should not be subjected to severe impact during transportation and unpacking. For inventory and storage, it should be stored on a rack in the original packaging, with a stacking height not exceeding 5 layers. The storage place should be clean, with an ambient temperature not exceeding -45℃〜+85℃, relative humidity not exceeding 75%, and the air should not contain corrosive gases and mold. 8 Notes In case of any of the following situations, free repair will not be provided even within the warranty period: 1. Product failure or damage caused by improper use or wrong use. 2. Product failure or damage caused by unauthorized modification of the product or improper repair. 3. Product failure or damage caused by human factors. 4. Product failure or damage caused by earthquakes, fires, floods or other force majeure. If the product malfunctions, please contact our company's customer service as soon as possible. Thank you for your cooperation!
