1 Solution Background Requirements

for power plant boiler transmitters, insulation cabinets, distribution cabinets and other equipment to ensure the normal operation of instruments and equipment in the insulation cabinets and distribution cabinets in winter. Data can be viewed and alarm information can be received on the computer and mobile phone in the computer room.

2 Temperature Monitoring Solution

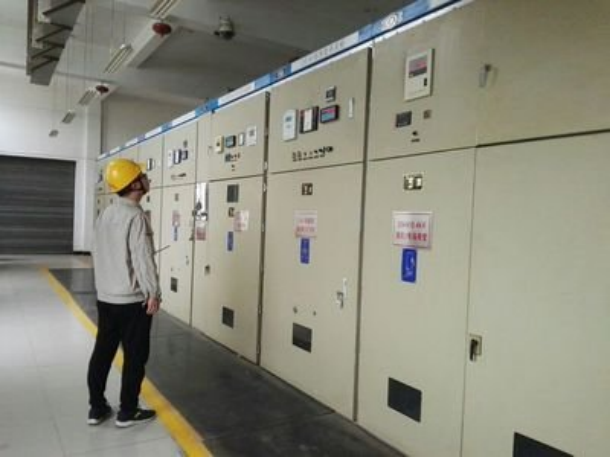

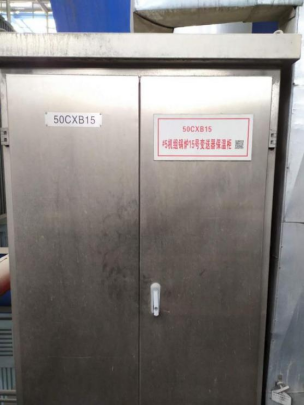

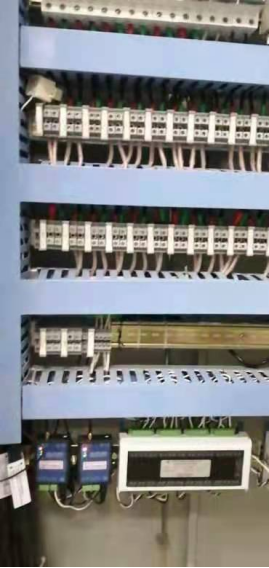

Tested electrical cabinet and insulation cabinet

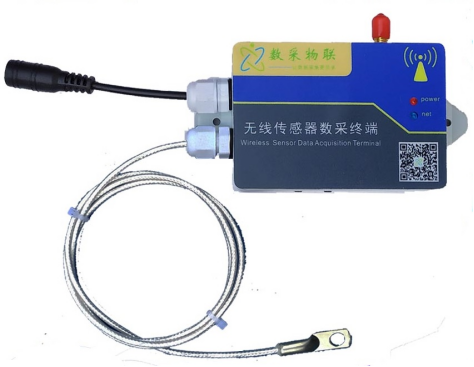

Appearance of wireless temperature sensor (temperature probe varies according to actual situation )

3 Current Monitoring Solution

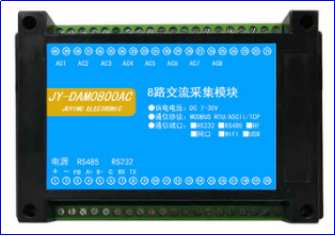

Appearance of current acquisition host module

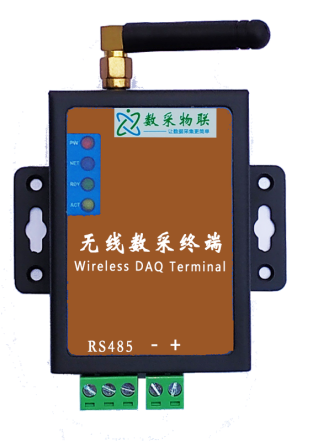

Appearance of matching wireless module

4. Cloud platform computer and mobile phone data display solution

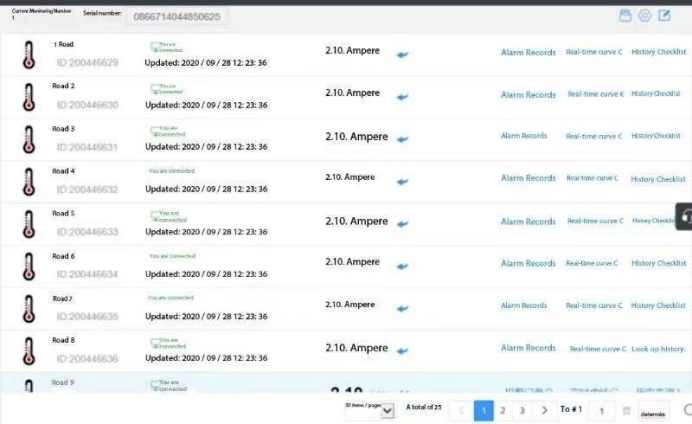

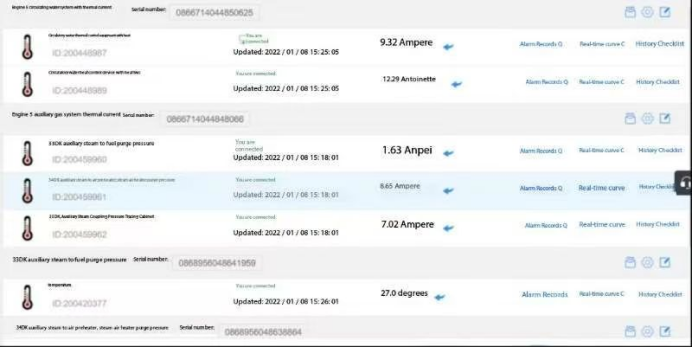

Computer interface diagram

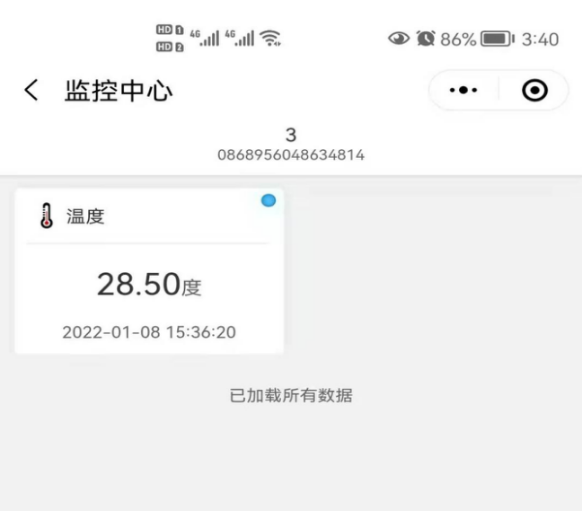

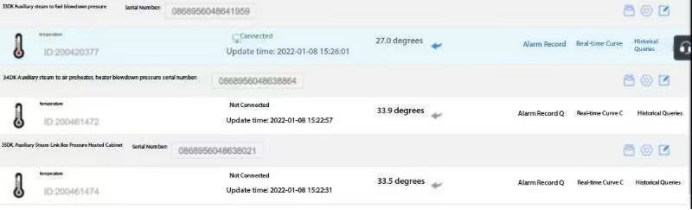

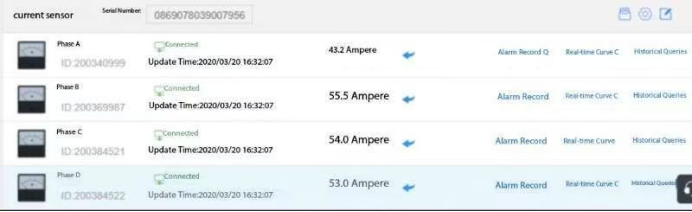

Mobile phone interface diagram

5 Distributed Temperature Monitoring Solution

According to the number of current paths: divided into the following two combinations

Package 1: 1-channel temperature + 6-channel current + wireless module

Package 2: 1-channel temperature + 8-channel current + wireless module

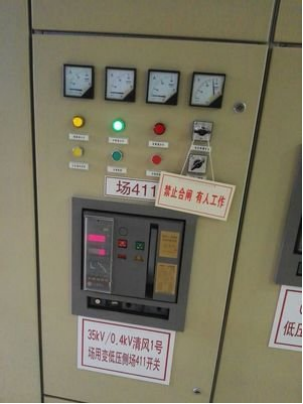

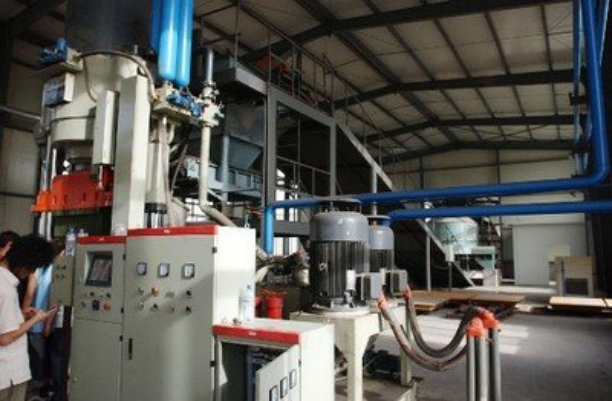

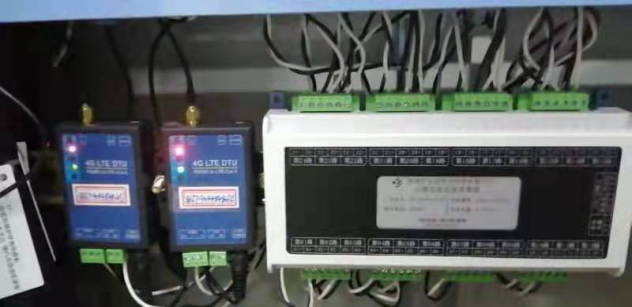

6 Actual Installation Scenarios
